Paint Booth

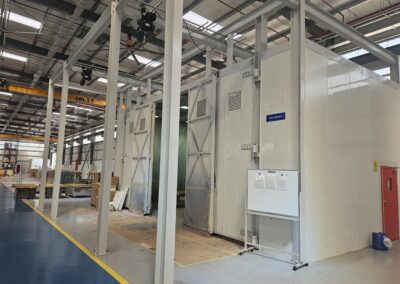

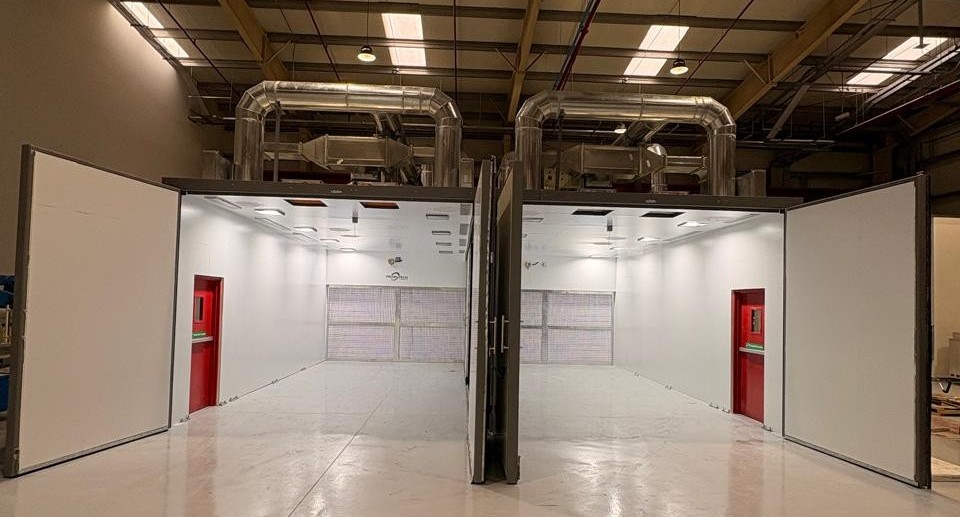

We design and manufacture all types of paint rooms like side draft, downdraft, wet type, Dry type, etc. We have installed many Paint booths with a Dry-type extraction system along with an Activated Carbon filter. These spray booths are equipped with an automatic pressure control system, alarms, and explosion-proof lights. Fully automated with sensors to monitor the VOC’s inside the paint room and activate the fans to ensure that the VOC level is always within the required safety limits.

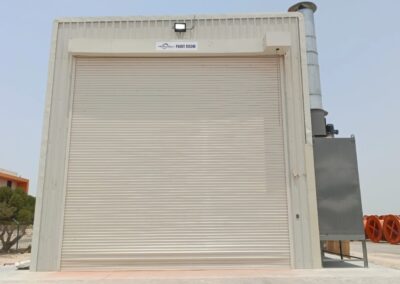

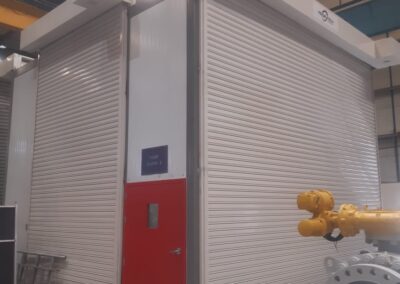

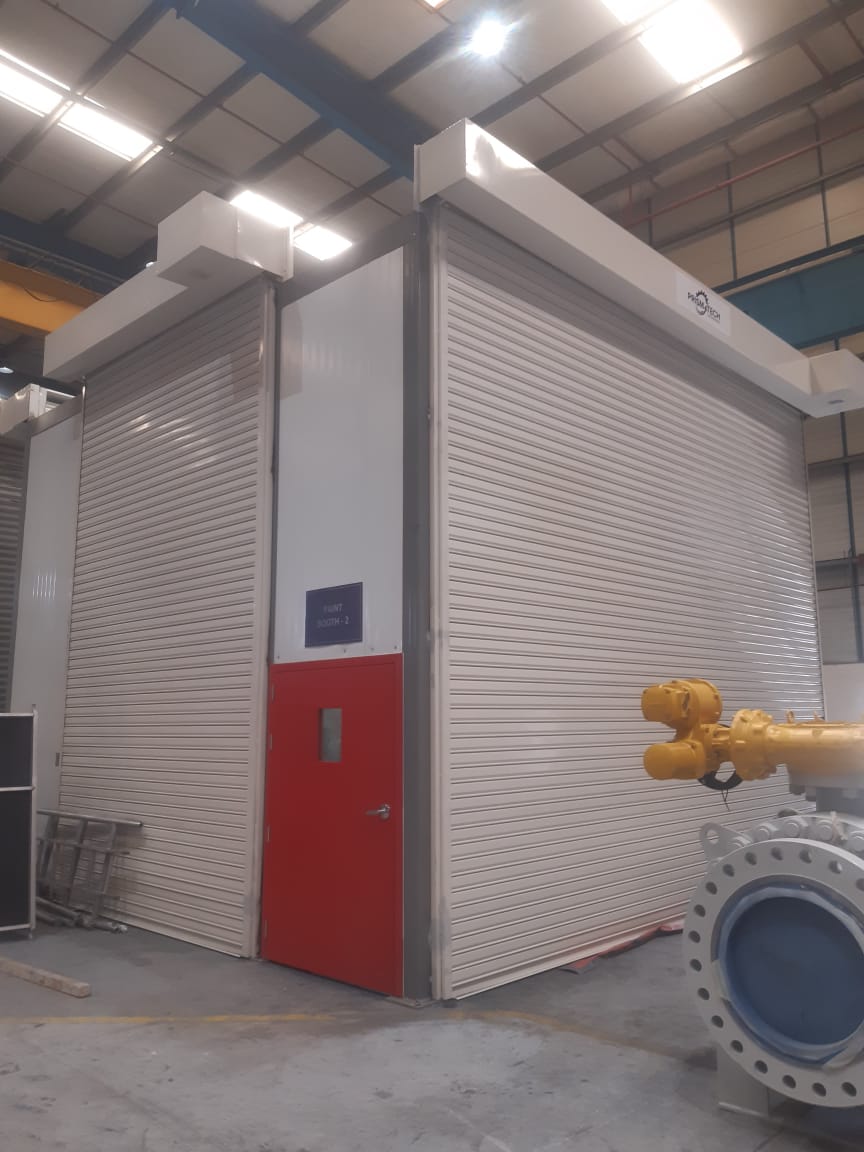

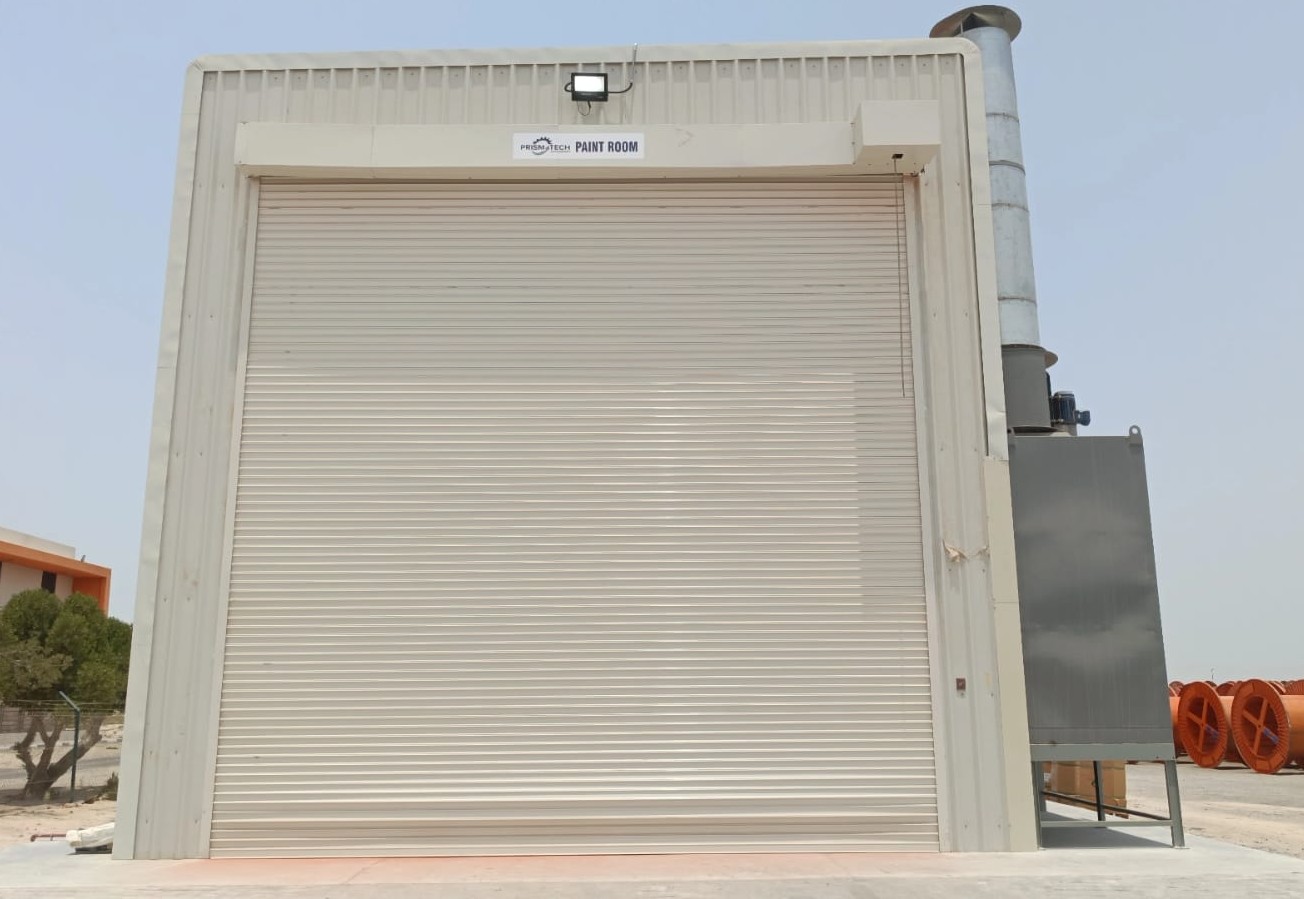

Our portable Paint booth is very easy to assemble, dismantle and reuse which is very ideal for site painting. Motorized Flame retardant roll-up curtain doors and explosion-proof lights will be part of this paint room. Containerized paint rooms can be supplied as per client specifications. Industrial paint booths with different types of heating systems can also be supplied.

We also manufacture Wet Type Paint rooms for specific customer requirements. Downdraft Paint rooms are also supplied for certain clients apart from our regular side draft design. The room is completely automatic with sensors, to ensure that the operator can start the painting only if the Fume Extractor and other types of equipment are switched ON. This will ensure operator safety and the overall safe environment

We have portable fume extraction chambers, these are fixed on wheels and are ideal for the removal of welding fumes, paint fumes, etc. These paint /fume extraction chambers are fixed with filters and are very easy to handle. Paint rooms are equipped with an Activated carbon filter in addition to the dry filter as a standard. Paint rooms are designed as per the latest OSHA standards and the latest local government guidelines. contact us.

Paint room with Activated Carbon Filter

Activated carbon acts as an adsorbent for those odors and gases, removing them from the air and resulting in a more pleasant environment. A carbon filter’s microscopic porous allows air to pass through while capturing odors and impurities.

It’s ideal for overspray paint applications where air filtration is required.  The paint room is fully automated, with sensors that monitor VOC levels and activate fans to ensure that the VOC levels are always within acceptable safety limits. Ventilation, activated carbon filters, a pressure control system, and explosion-proof lighting are all included in the paint rooms.

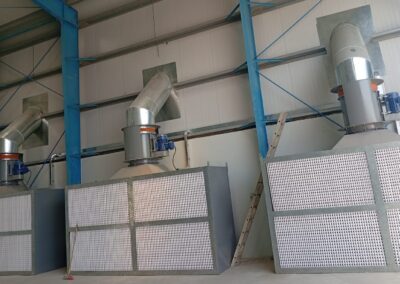

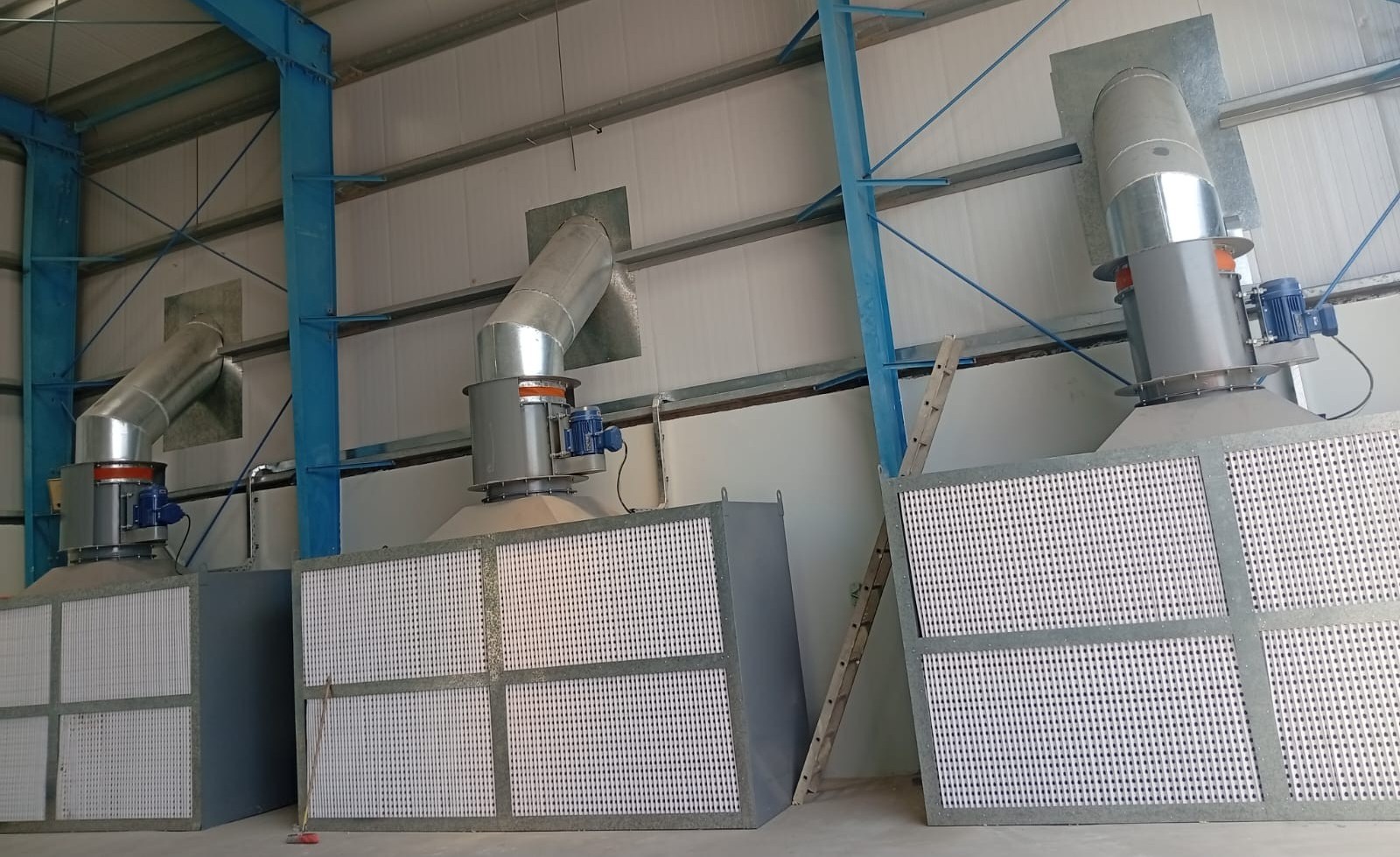

Side Draft Paint Booth

The Side Draft Paint Booth has a unique modular design that includes advanced paint arresting filters that ensure high efficiency in the arresting of oversprayed paint particles. Side Draft Paint Booth is reliant on airflow in the direction of spray painting by the painter who is inside the booth. As a result, when a Side Draft Paint Booth is opened from the front, the air draught moves towards the exhaust chamber, and thus the oversprayed particle (paint particle) moves in the same direction as the air draught.

The standard booth is delivered in a modular format at no additional cost, allowing for quick on-site assembly. All lighting components, controls, filters, and hardware are included, as well as side draught ventilation, an automatic pressure control system, motorised flame retardant roll-up curtain doors, and explosion-proof lights.​Prism Tech Engineering has been producing high-quality Paint Booth and other industrial products for many years. We have a lot of experience building paint booths with a variety of material handling, product sizes, and production volumes.
