Automatic Shot Blasting Machine

Types of shot blasting machines

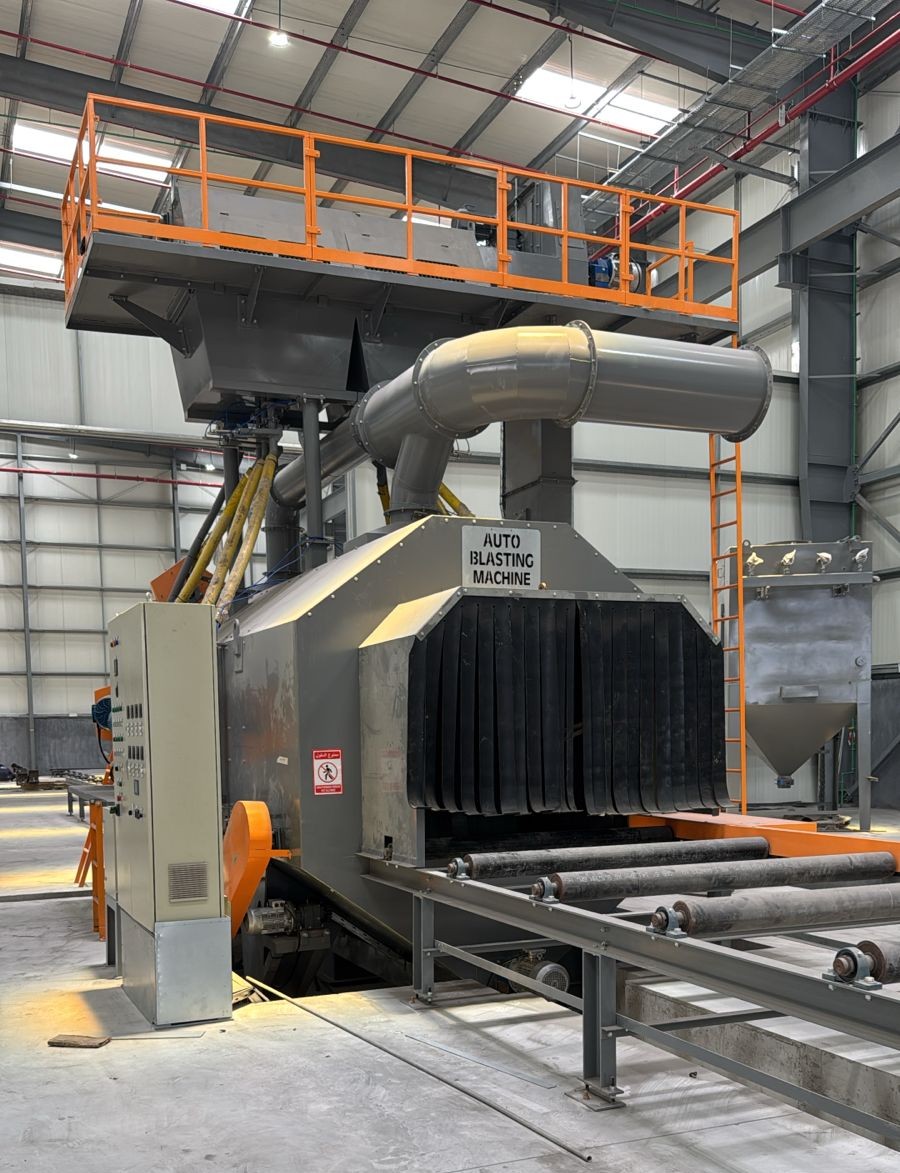

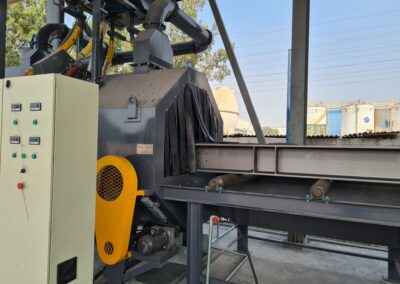

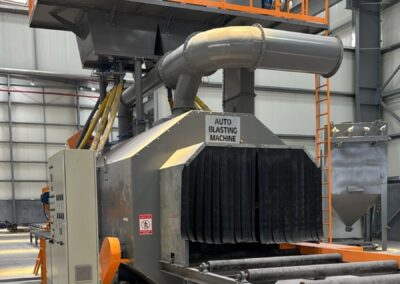

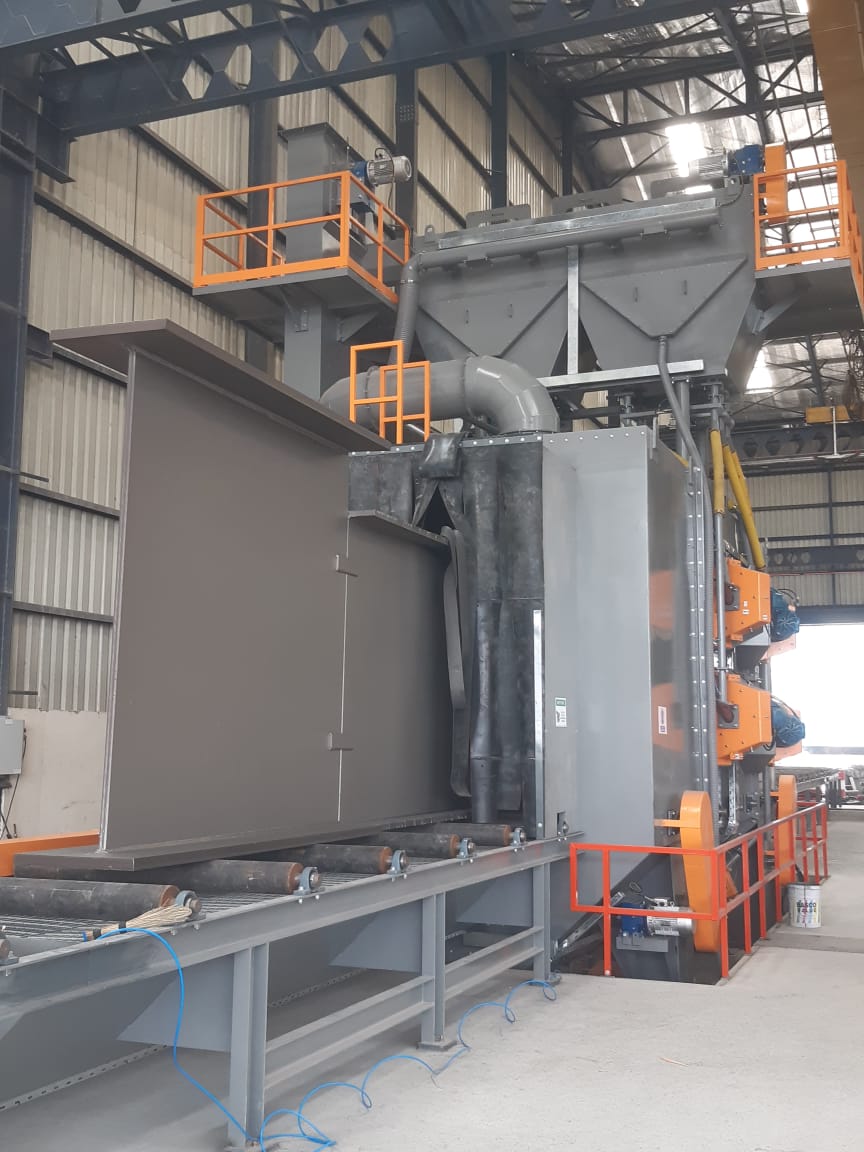

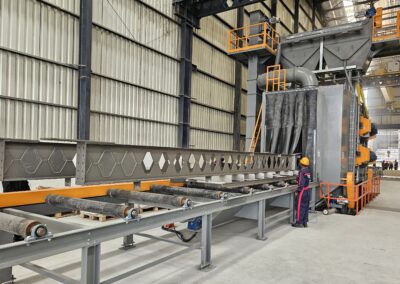

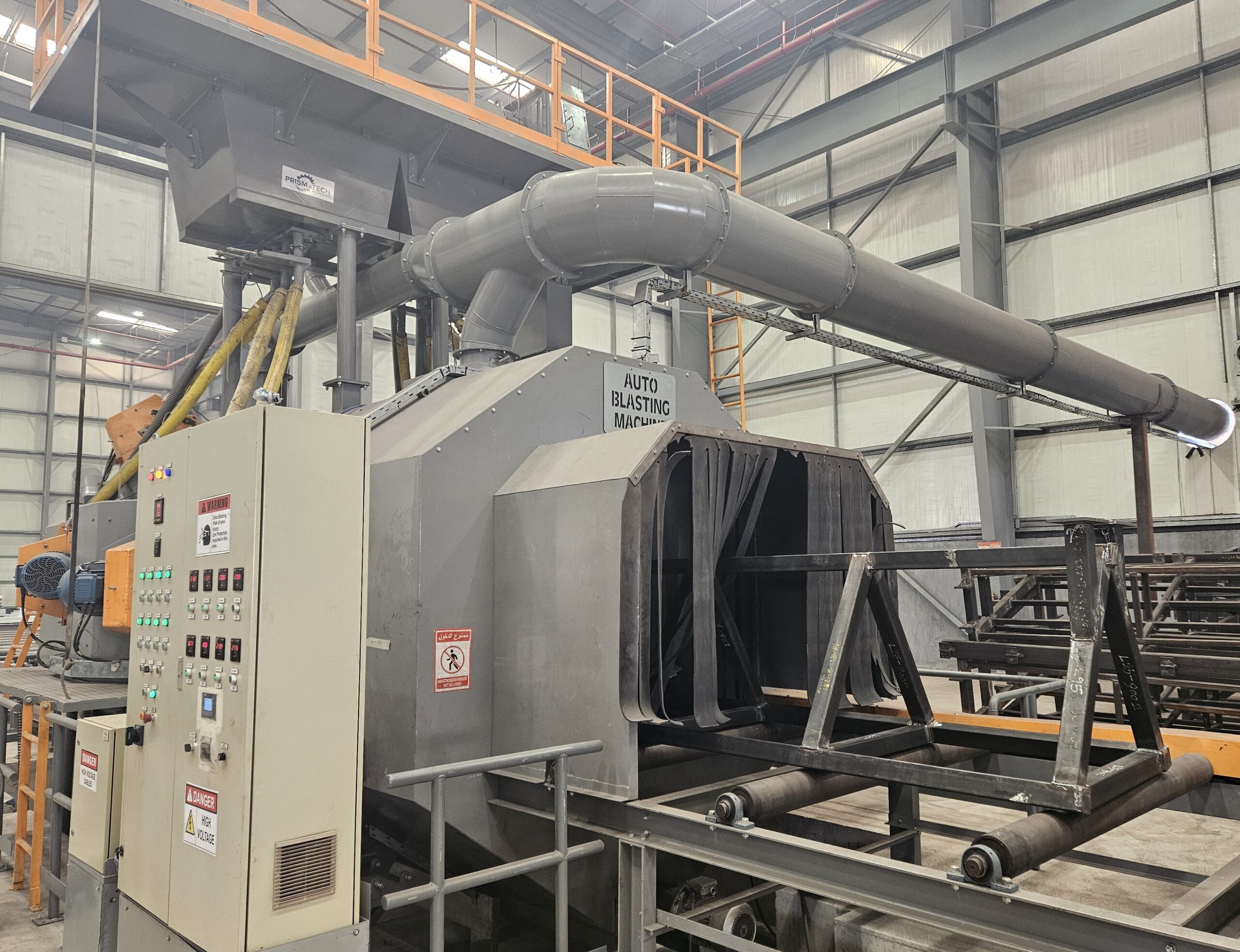

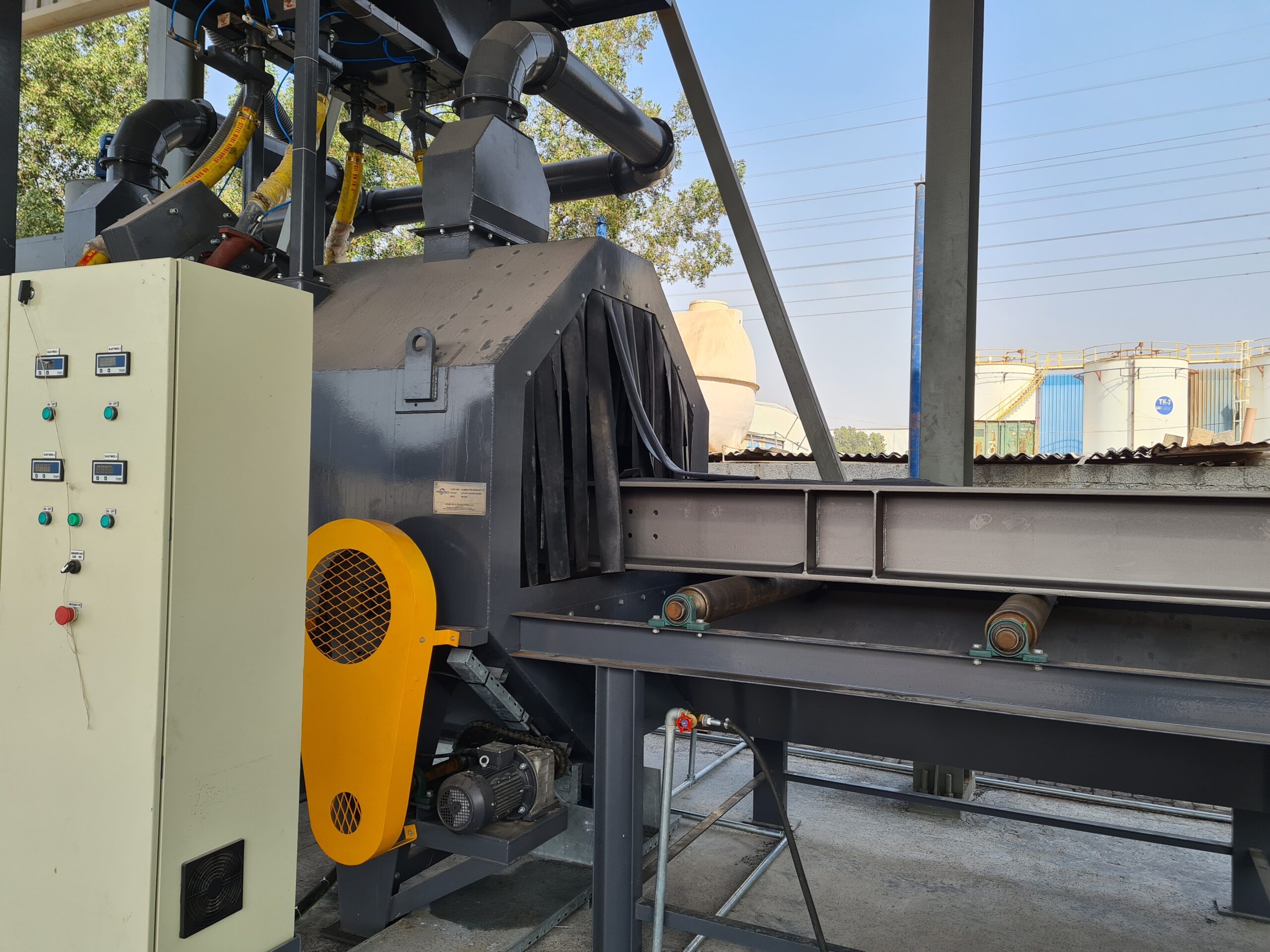

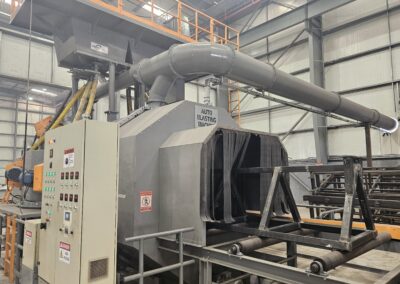

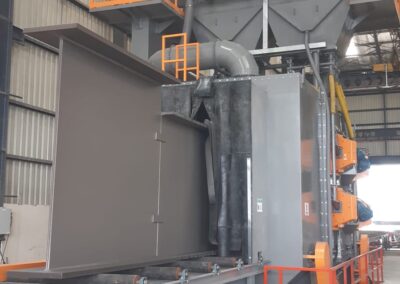

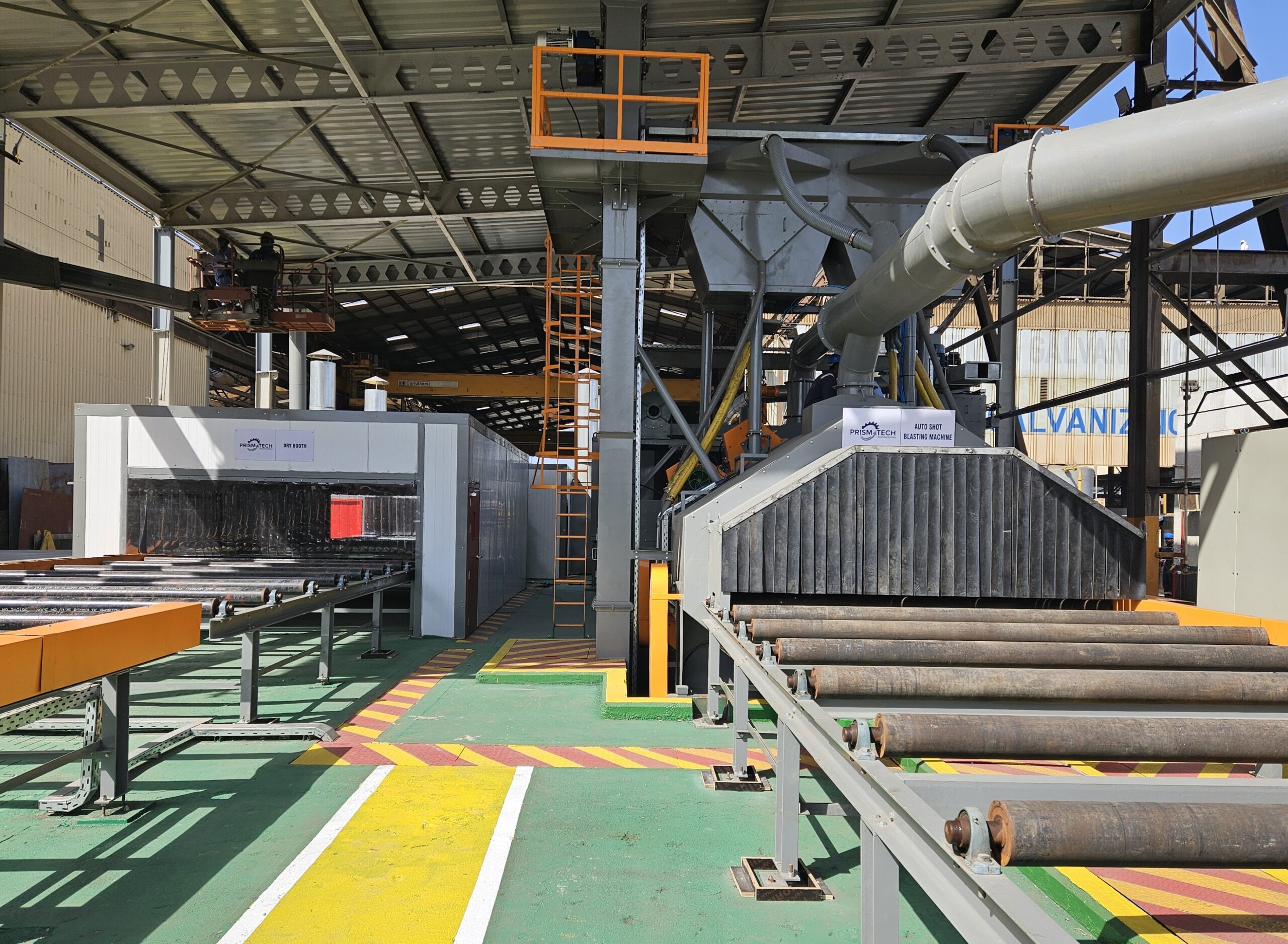

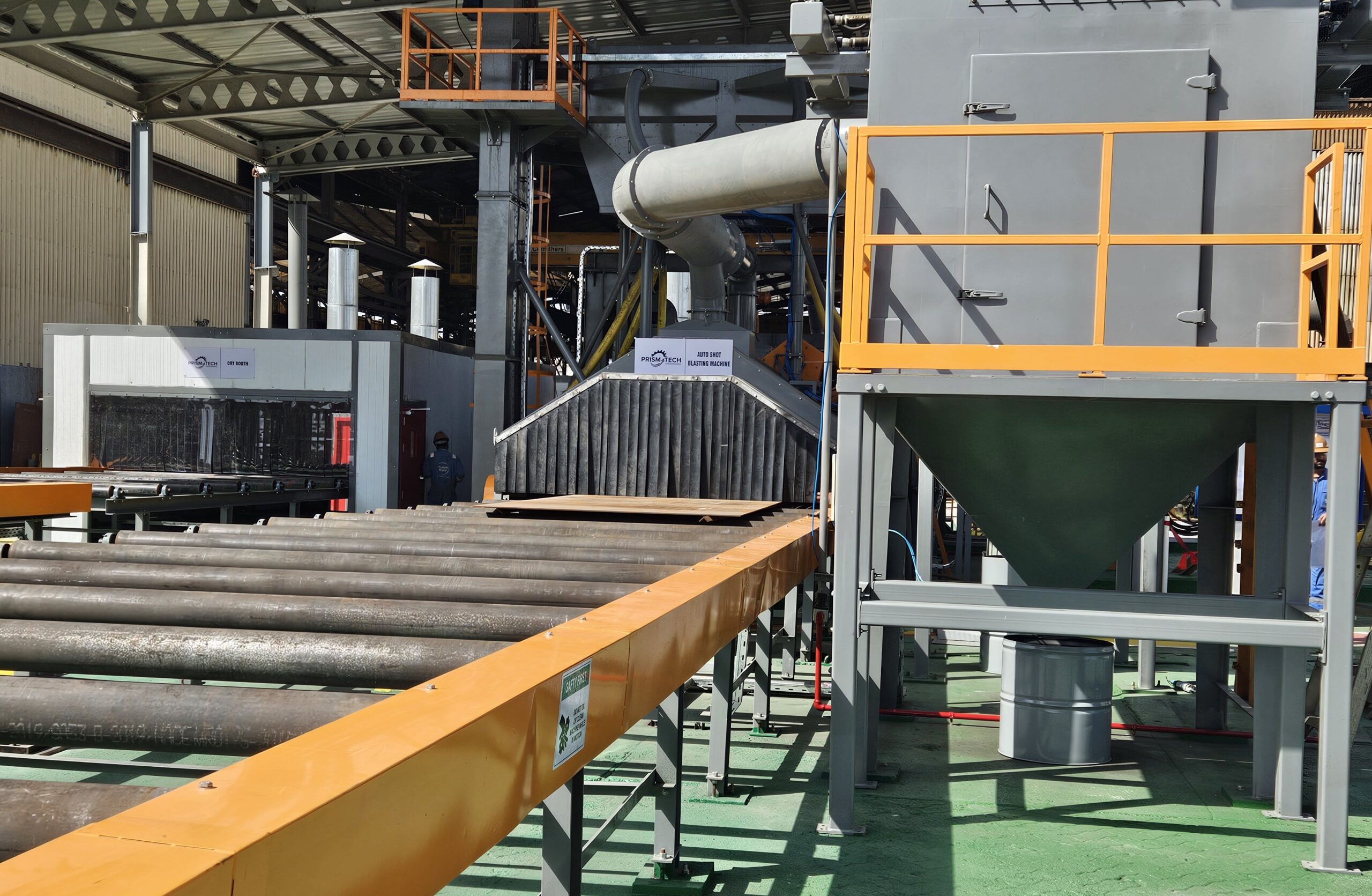

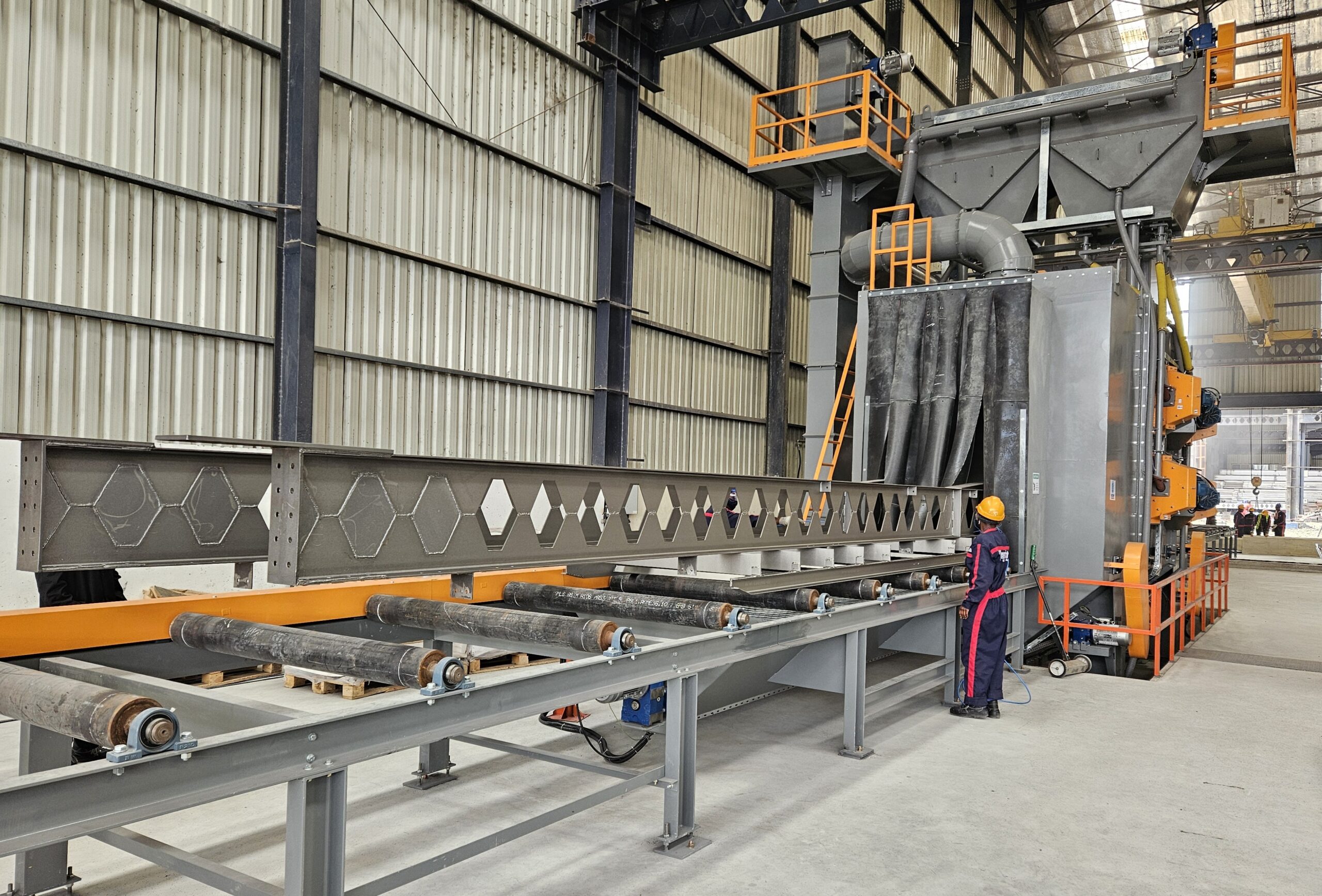

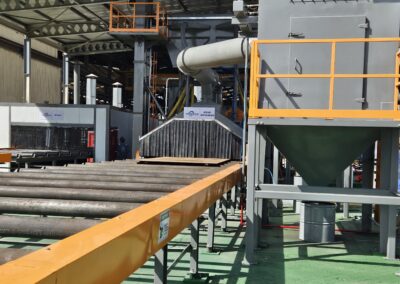

Roller Conveyor Shot Blasting Machine–

For all types of fabricated steel structures. We design and manufacture Shot Blasting machines from single wheel configuration to 12 wheel configuration. Specially designed with angled wheels for maximum blasting coverage. In a roller conveyor shot blasting machine, the items to be blasted are loaded onto a motorized Roller conveyor. The items get blasted inside the blast cabinet while moving on the conveyor. All types of post-fabrication items can be blasted in this blasting machine. A standard range of items like pipes, plates, sections, etc, can also be blasted in this roller conveyor shot blasting machine. Blasting Surface finish quality from sweep blasting to SA 3 blasting quality can be achieved by adjusting the Roller conveyor speed.

Diablo Conveyor Type

Pipes are conveyed for automatic shot blasting using Diablo-type rollers and a tyre-type conveyor. To achieve the required throughput speed, the tyres are angled and the speed is controlled by a frequency controller. As the pipe passes through the shot blasting machine, it rotates,s exposing the entire outside diameter of the pipe to the blast stream. Diablo conveyor is best suited for blasting straight pipes, gas cylinders, etc.

MonoRail Hanging Type

These are high-capacity machines that are used for batch production where multiple jobs are loaded at once. Monorail shot blasting machines are used for a variety of jobs in the automobile, casting and foundry, and fabrication industries. A continuous overhead conveyor keeps the workpieces moving at a constant speed through the machine. The conveyor is made up of a chain and trolley system suspended from a monorail that can be indexed or driven at a constant speed. Machines come in a variety of sizes and can perform a wide range of tasks. Monorail hanging type is used for transformers, scaffoldings, light identical sections, etc.

Inline Blasting and Painting System

Automatic shot blasting and painting lines are all in one solution for all of your surface prep and painting needs. Handling, pre-cleaning, pre-treatment, drying, shot blasting, painting, and drying systems are all integrated into these machines. The workpiece is loaded onto a conveyor where it will be treated for corrosion prevention. These lines feature both a roller conveyor and a monorail conveyor system. Automatic or manual spray painting options are available, and they can be customized to fit the size of the job and the needs of the client. Equipment can be supplied with various types of conveying systems. Automatic blasting of plates followed by inline priming with slat conveyors.

Blast Cabinet

Blast cabinets are used for removing rust and contaminants from a workpiece in a dust-free, eco-friendly manner. Our blast cabinets’ compact design ensures that only a small amount of space and resources are required for simple and convenient blasting. Surface preparation can be done quickly and safely thanks to the features built into each blast cabinet. Prism Tech Engineering offers a variety of blast cabinets, each designed for a specific application and workflow. Blast cabinets are best suited for blasting small precision items one product at a time. With extended conveyors for material exit and entry. Designed for use of all types of abrasives like Glass beads, Aluminum oxide, Garnet, and steel abrasive.

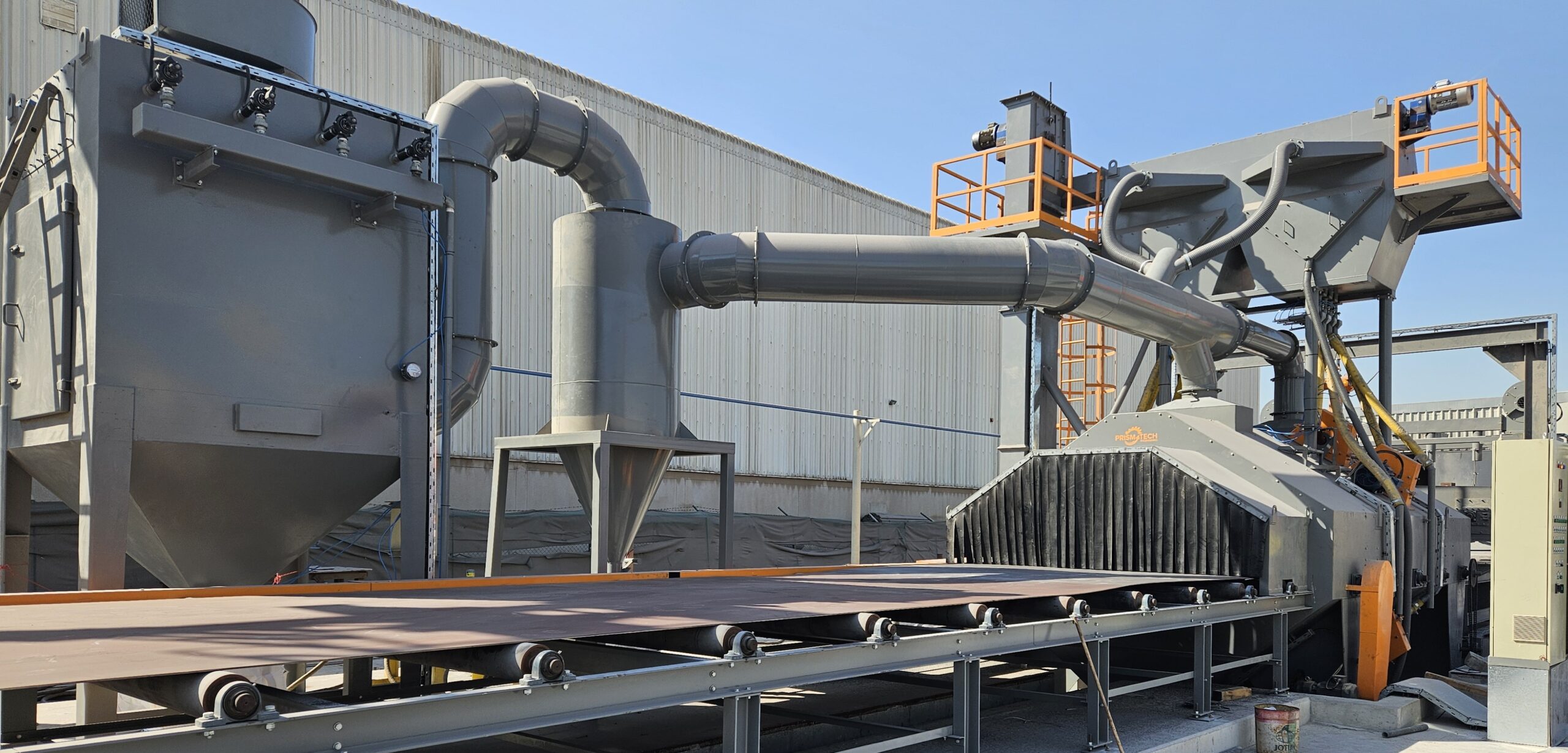

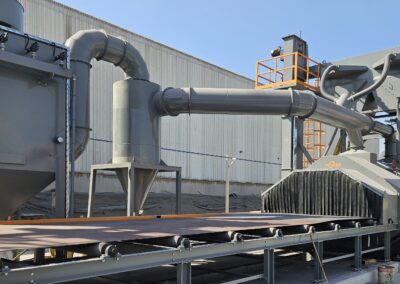

Plate Blasting Machine

Plate blasting machines are used for shot blasting plates and other flat products using a roller conveyor system. This machine is commonly used in the shipbuilding industry and in storage tanks that require a large number of plates. These machines have a brush and blow-off system built-in for automatic abrasive removal from the job. Horizontal plate blasters for plates up to 4 m wide with multiple elevators. This machine is equipped with sensors to detect the plate width.

Turn Table Blasting Machine

Table blasting machines are used in small and medium-sized industries for a variety of component sizes. Ideal for castings and heavy items.

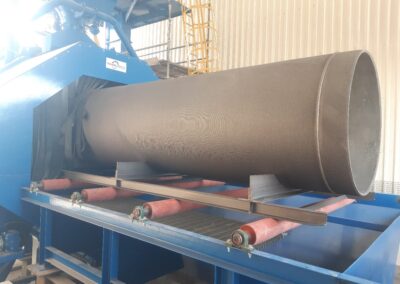

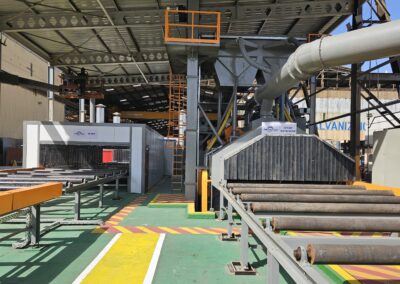

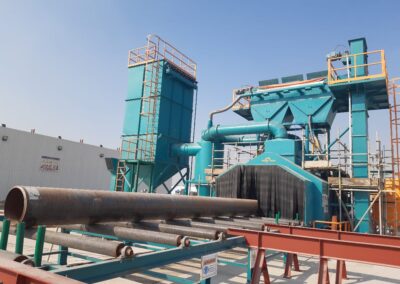

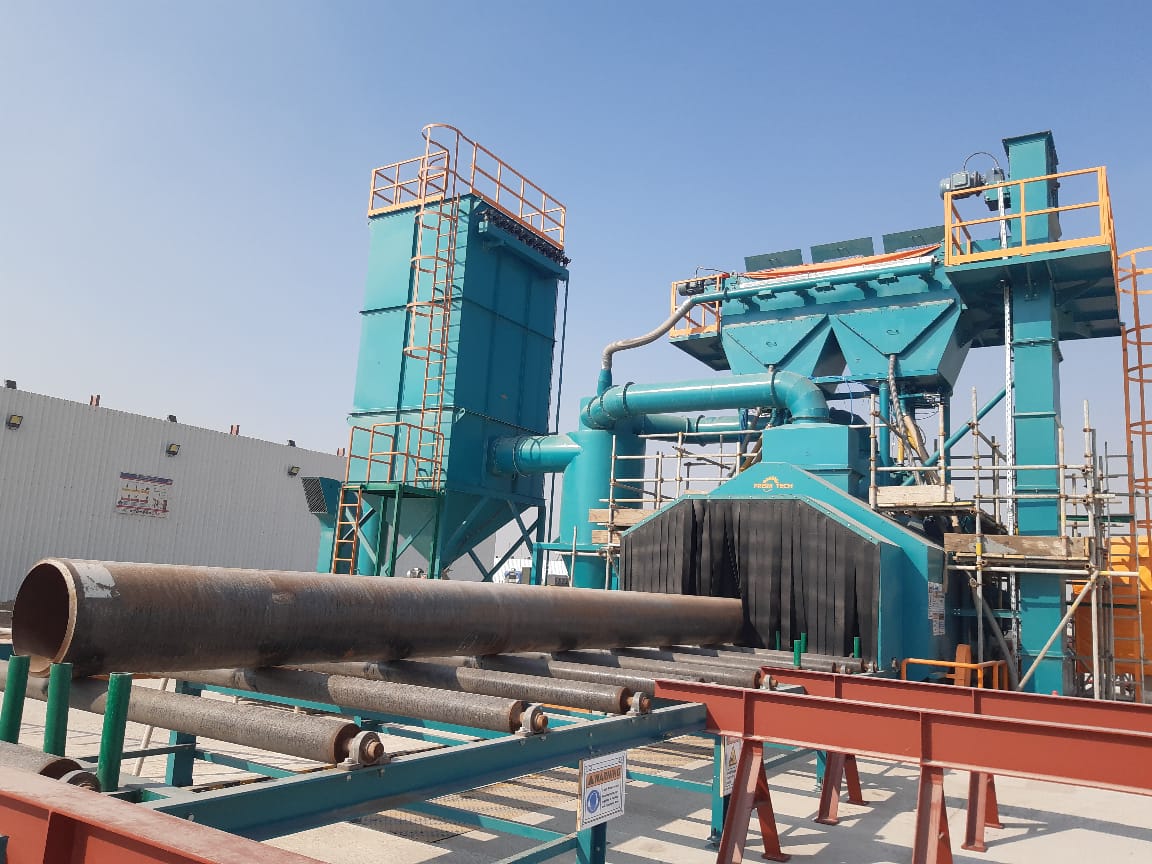

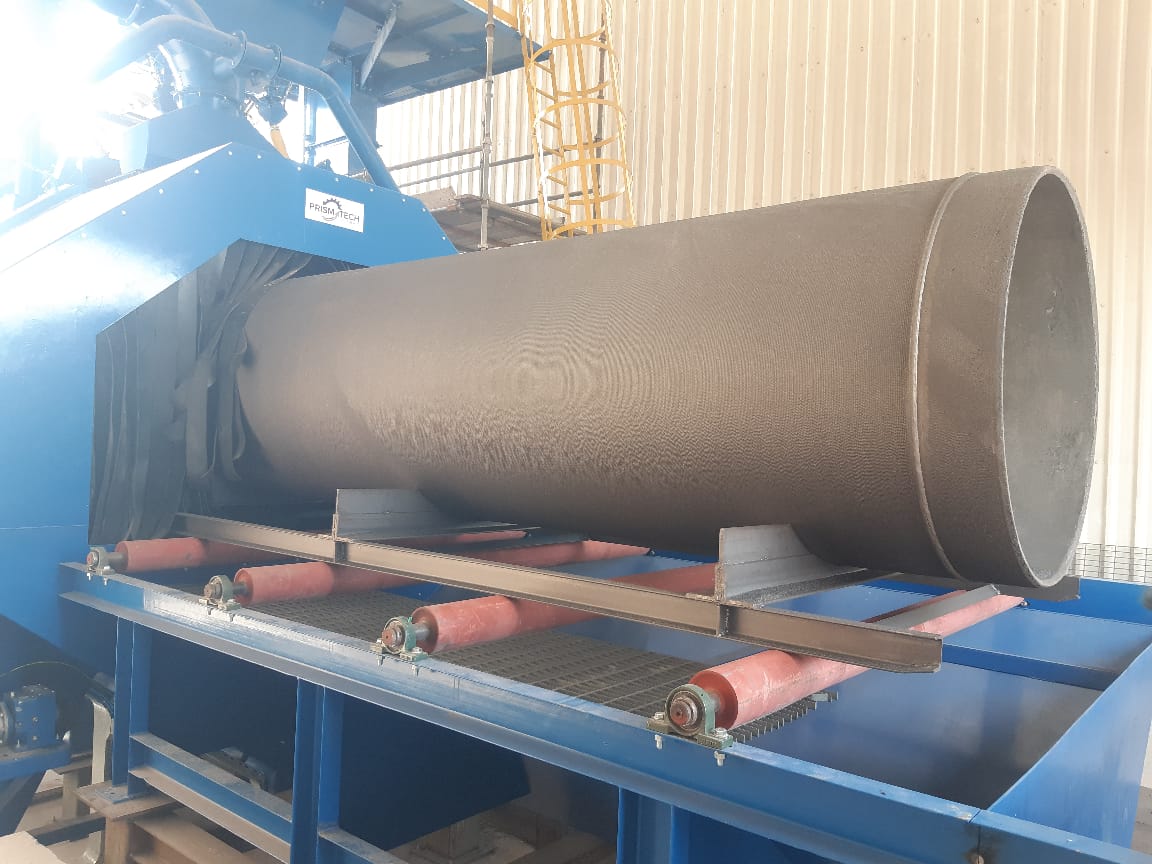

Pipe Blasting Machine

Pipes for the automatic shot blasting process are conveyed into the blasting machine using a horizontal conveyor. These pipe blasting machines are designed for heavy-duty operation and are commonly used in the pipe coating industry, pipeline projects in the petroleum, power, oil & gas, and petrochemical industries. Shot blasting machines can be custom-designed for pipes of various diameters, and rubber seals are provided on both the inlet and outlet sides of the machine, which can be changed to suit the pipe size to reduce abrasive escape. A pipe blasting machine with a horizontal conveyor and angled wheels is used to blast multiple pipes at once, as well as 3D spools.
